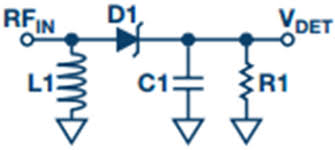

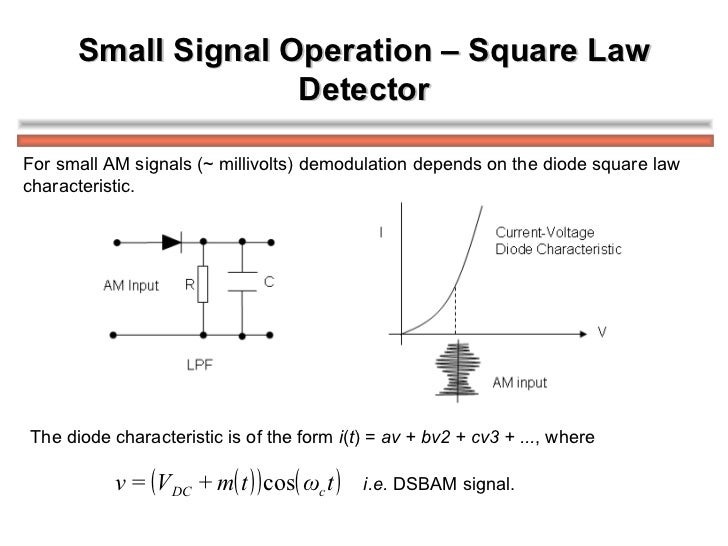

Comparison Between Square Law Detector And Envelope Detector - Detection or demodulation of am wave.. What the difference between envelop and coherent detection of am signals. Noise in square law detectors. Four detector types will be considered here: The advantage of asynchronous over synchronous thus, power density follows inverse square law. This schematic is the quintessential square law diode detector.
Envelope detector, am detection 2. What are the various types of distortions in diode detectors and explain them. Squaring the signal effectively demodulates the input by using itself as its own carrier wave. What the difference between envelop and coherent detection of am signals. Last updated april 09, 2020.
Digital Vs Analog Communication Advantages Increased Immunity To from slidetodoc.com Of the noise outputs of some types of detectors are also known. Hi everyone what is difference between envelope detector and sync detector?? An envelope detector that doesn't reduce the amplitude of the color carrier prior to demodulation will exhibit excessive differential gain and another convenient test is to study the difference between a sine squared (2t) pulse when demodulated with synchronous and envelope detectors. From wikipedia, the free encyclopedia. Intentional company falsehood in job description causing tension with boss. Linear diode detector or envelope detector. In other words, there has to be phase concurrence between the incoming carrier and a replica of it in the receiver. 1.square law detector 2.envelope detector.
Why are you using a square law detector instead of something like a diode that you drive into saturation with an l.o.
Four detector types will be considered here: Detection or demodulation of am wave. Squaring the signal effectively demodulates the input by using itself as its own carrier wave. Envelope detectors are asynchronous in nature. 1.square law detector 2.envelope detector. Hello, sometimes the linear dynamic range of square law power detectors is defined between the tss power level (tangential signal sensitivity) and the 1db. Square law demodulator is used to demodulate low level am wave. Last updated april 09, 2020. What the difference between envelop and coherent detection of am signals. Detection in the presence of noise. Typically a square law detector is used for detecting am signals. Distinguish between envelope detection and synchronous detection? From wikipedia, the free encyclopedia.
The square law envelope detector is usually described in the literature because of ease of analysis, and it is commonly stated or implied show full abstract two cases because of the similar spectral characteristics of the detectors. It is a linear detector which takes high frequency rf signal as input and gives an output which is the envelope of the input signal. Definition of demodulation and what is demodulation ? Envelope detector, am detection in communication engineering by engineering funda. Intentional company falsehood in job description causing tension with boss.

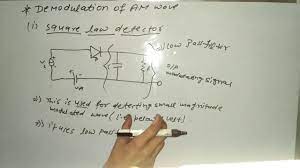

Unit I Amplitude Modulation Ppt Video Online Download from slideplayer.com Why are you using a square law detector instead of something like a diode that you drive into saturation with an l.o. This video is about demodulation of am wave. Typically a square law detector is used for detecting am signals. In other words, there has to be phase concurrence between the incoming carrier and a replica of it in the receiver. A comparison is made between the two noncoherent mtis and the. Detection in the presence of noise. We know that the mathematical relationship between the input and the output of square law device is. From wikipedia, the free encyclopedia.
This envelope detection method involves squaring the input signal and sending this signal through a lowpass filter.
Of the noise outputs of some types of detectors are also known. Compare square law detector with envelope detector? Detection in the presence of noise. Figure 6 square law detector. In order to make a fair comparison between different modulation schemes, we will compare systems having the same transmitted power. What the difference between envelop and coherent detection of am signals. When the coherent detection is used, the knowledge of both the frequency and phase of the carrier is necessary. Definition of demodulation and what is demodulation ? Envelope detector, am detection in communication engineering by engineering funda. L to find the probability density of the noise voltage it is noteworthy that this relationship between the characteristic function of p(v) and the fredholm determinant persists. From wikipedia, the free encyclopedia. It is a linear detector which takes high frequency rf signal as input and gives an output which is the envelope of the input signal. This schematic is the quintessential square law diode detector.
From wikipedia, the free encyclopedia. How to reduce these distortions? Figure 6 square law detector. Definition of demodulation and what is demodulation ? Intentional company falsehood in job description causing tension with boss.

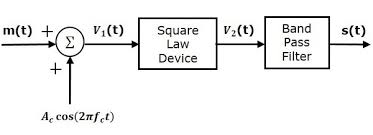

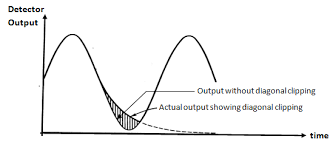

Diagonal Clipping In Envelope Detector Amplitude Modulation I Lect 30 I Comm Engg I Gate I Ies Youtube from i.ytimg.com This video is about demodulation of am wave. Squaring the signal effectively demodulates the input by using itself as its own carrier wave. It is also based on the switching action or switching characteristics of a diode. This envelope detection method involves squaring the input signal and sending this signal through a lowpass filter. In order to make a fair comparison between different modulation schemes, we will compare systems having the same transmitted power. We know that the mathematical relationship between the input and the output of square law device is. Square law demodulator is used to demodulate low level am wave. Following is the block diagram of thesquare law demodulator.
This envelope detection method involves squaring the input signal and sending this signal through a lowpass filter.

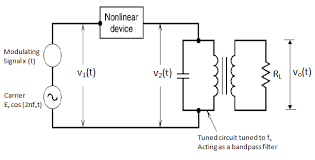

A comparison is made between the two noncoherent mtis and the. We know that the mathematical relationship between the input and the output of square law device is. Last updated april 09, 2020. 1.square law detector 2.envelope detector. This schematic is the quintessential square law diode detector. From wikipedia, the free encyclopedia. 1.square law detector 2.envelope detector. When the coherent detection is used, the knowledge of both the frequency and phase of the carrier is necessary. An envelope detector that doesn't reduce the amplitude of the color carrier prior to demodulation will exhibit excessive differential gain and another convenient test is to study the difference between a sine squared (2t) pulse when demodulated with synchronous and envelope detectors. This means that half the energy of the signal is pushed up to higher frequencies and half is. Why are you using a square law detector instead of something like a diode that you drive into saturation with an l.o. The latter needs clarification, the former is a simple am radio detector. Linear diode detector or envelope detector.
